Review of Respiratory Medicine - Volumen 22, Número 2 - June 2022

Original Articles

Asthma-COPD Overlap: Findings of the EPOC.AR Study

Prevalencia de la superposición Asma-EPOC: los hallazgos en el estudio EPOC AR

Autor : López Ana M.1, Abrate Vanesa del V.1, Echazarreta Andrés2, Arias Sergio3, Del Olmo Ricardo4, Colodenco Federico4, Arce Santiago C.5, Giugno Eduardo6

1 Hospital Privado Universitario de Córdoba, 2Hospital Interzonal Especializado en agudos y crónicos San Juan de Dios, La Plata, 3Instituto Nacional de Enfermedades Respiratorias Emilio Coni, Ministerio de Salud de la Nación, Santa Fe, 4Hospital María Ferrer, Ciudad Autónoma de Buenos Aires, 5Instituto de Investigaciones Médicas A. Lanari, Universidad de Buenos Aires, Ciudad Autónoma de Buenos Aires, 6 Hospital Cetrángolo, provincia de Buenos Aires

Correspondencia : Vanesa Abrate E-mail:


Background: Asthma and COPD are heterogeneous diseases, and some patients share clinical features of both conditions. There are uncertainties about the criteria to define asthma-COPD overlap (ACO), and its prevalence is 15-25% in the adult population with chronic airflow obstruction. The purpose of this study was to determine the prevalence of ACO in Argentina, which is unknown.

Objectives: Primary: to determine the prevalence of ACO in the EPOC.AR study. Secondary: to evaluate and analyze the clinical features of patients with ACO, the severity of the symptoms, and the frequency and severity of exacerbations. to describe and compare the treatment of ACO with that of pure COPD.

Database of the EPOC.AR study: spirometries, asthma, atopy or rhinitis, respiratory symptoms: CAT (COPD Assesment Test) and mMRC (Modified Medical Research Council) scale, frequency of exacerbations/previous year, comorbidities and treatments. 2017 GOLD Guides (Global Initiative for Chronic Obstructive Lung Disease) to determine airflow obstruction degrees and Groups A, B, C, and D.

ACO diagnostic criteria (expert committee from USA, East Europe and Asia that took place in Denver, 2015):

MAJOR CRITERIA: 1. Persistent obstruction (post-BD [bronchodilator] FEV1/FVC (forced expiratory volume in the first second/forced vital capacity) < 70% or LLN [lower limit of normal] ) in ≥ 40 years. 2. SM (smoking) ≥ 10 packs/year, air pollution or biomass. 3. Documented history of asthma before 40 years or post-BD response ≥ 400 ml in FEV1.

MINOR CRITERIA: 1. Documented history of atopy or allergic rhinitis. 2. Post-BD response in FEV1 > 200 ml. 3. Peripheral blood eosinophil count ≥ 300 cells-Ul-1 (not performed in EPOC.AR).

Chi-Square Test, Pearson’s Chi Square Test, likelihood ratio, linear-by-linear association.

Results: COPD (n 498), n 95 with ACO criteria, males (53.4%), mean age 63.6 years.

1% without asthma and BD response ≥ 400 ml; 32.7% asthmatics (3.6% with BD response ≥ 400 ml and 14.5% between 200-400 ml); n 23 with BD response ≥ 400 ml (4.6%). ACO prevalence: 19.08% (CI [Confidence Interval] 15.6-22.5) and 2.6% of the total population of EPOC.AR. In the comparison between the ACO and COPD populations, we detected the following: lower mean age and pre-BD FEV1 (p < 0.01), higher frequency of BD response (p < 0.05), higher frequency of sibilance (p < 0.01; CI 2.75-7.64), higher frequency of previous asthma diagnosis (p < 0.01; CI 3.79-10.05); and 26.08% had family history of asthma. Greater use of ATBs (antibiotics) (p < 0.05) and ICS (inhaled corticosteroids)/ LABA (long-acting beta- adrenergic agonists) (p < 0.05; CI 1.1-5.3). Higher frequency of exacerbations (12.47%; CI 9.56-15.39) that motivated the indication of medication in 90.48% and 2.49 times more alterations in daily activities and absence from work. There weren’t any significant differences between patients with ACO and pure COPD regarding frequency of groups A, B, C and D.

Conclusions: the prevalence of ACO was 19.08% in the COPD patients of the EPOC. AR study; they were significantly younger, with higher degree of obstruction, frequency of sibilance, use of antibiotics/previous year and inhaled corticosteroids (LABA/IC). We emphasize the importance of identifying this phenotype in order to use a suitable treat­ment, given its clinical implications and deterioration in quality of life.

Key word: Asthma, Pulmonary disease, chronic obstructive, Smoking


Introducción: Asma y EPOC son enfermedades heterogéneas, algunos pacientes comparten características clínicas de ambas. Existen incertidumbres en los criterios para definir superposición asma-EPOC (ACO) y la prevalencia es entre el 15% y el 25% de la población adulta con obstrucción crónica del flujo aéreo. Motiva este estudio determinar la prevalencia de ACO en Argentina, que es desconocida.

Objetivos: Primario: Determinar prevalencia de ACO en el estudio EPOC-AR. Se­cundarios: Evaluar y analizar las características clínicas de los pacientes con ACO, la gravedad de los síntomas, la frecuencia y gravedad de exacerbaciones. Describir y comparar el tratamiento entre ACO vs. EPOC puros.

Base de datos del estudio EPOC.AR: Espirometrías, asma, atopía o rinitis, síntomas respiratorios: CAT (prueba de evaluación de EPOC) y mMRC (Medical Research Council modificado), frecuencia de exacerbaciones/año previo, comorbilidades y tratamientos. Guías GOLD 2017 para determinar grados de obstrucción espirométrica y Grupos A, B, C y D.

Criterios diagnósticos de ACO (comité expertos USA, Europa del Este y Asia-Denver 2015):

CRITERIOS MAYORES: 1. Obstrucción persistente (FEV1/FVC pos-BD <70% o LIN) en ≥ 40 años. 2. TBQ ≥ 10 paquetes/año, contaminación ambiental o biomasa. 3. Historia documentada de asma antes de los 40 años o respuesta pos-BD ≥ 400 mL en FEV1.

CRITERIOS MENORES: 1. Historia documentada de atopía o rinitis alérgica. 2. Respu­esta pos-BD en FEV1 > 200 mL. 3. Recuento de eosinófilos en sangre periférica ≥ 300 células-Ul-1 (no realizado en EPOC.AR).

Prueba de Chi-cuadrado, Chi-cuadrado de Pearson, razón de verosimilitud, asociación lineal por lineal.

Resultados: EPOC (n498), n95 con criterios de ACO, masculino (53,4%) y edad pro­medio 63,6 años.

El 1%, sin asma y respuesta BD ≥ 400 mL; el 32,7%, asmáticos (3,6% respuesta BD ≥ 400 mL y el 14,5%, entre 200-400 mL); n23 respuesta BD ≥ 400 mL (4,6%). Prevalen­cia ACO: 19,08% (IC 15,6-22,5) y del 2,6% del total de la población de EPOC.AR. En población ACO vs. EPOC, se detectó: menor promedio de edad y de FEV1 pre BD (p < 0,01), mayor respuesta BD (p < 0,05), mayor frecuencia de sibilancias (p < 0,01; IC 2,75-7,64), mayor frecuencia de diagnóstico previo de asma (p < 0,01; IC 3,79-10,05) y el 26,08% tenían antecedentes familiares de asma. Mayor uso de ATB (p < 0,05) e ICS/LABA (p < 0,05; IC 1,1-5,3). Mayor frecuencia de exacerbaciones (12,47%; IC 9,56-15,39) que motivaron indicación de medicación en un 90,48% y 2,49 veces más de alteraciones en actividades diarias y ausentismo laboral. No se registraron diferencias significativas entre pacientes con ACO frente a EPOC puros en frecuencia de grupos A, B, C y D.

Conclusiones: La prevalencia de ACO fue del 19,08% en pacientes EPOC del es­tudio EPOC.AR; tenían significativamente menor edad, mayor grado de obstrucción, frecuencia de sibilancias, uso de antibióticos/año previo y CI (LABA/CI). Destacamos la importancia de identificar este fenotipo para un tratamiento adecuado por sus impli­cancias clínicas, y deterioro en calidad de vida.

Palabras clave: Asma, Enfermedad pulmonar obstructiva crónica, Tabaquismo

Received: 07/14/2021

Accepted: 03/13/2022


With the growing recognition of asthma and COPD as heterogeneous diseases that share clinical, func­tional and inflammatory similarities, attention has been drawn to patients with clinical features of both diseases, who were qualified as patients with asthma-COPD overlap (ACO)1, 2 . In smokers, asthma is considered a risk factor for developing COPD, as shown in the Tucson epidemiologic study, with a 12 times higher risk in asthmatic smokers versus non-asthmatic smokers3 .

Another information that supports the coexis­tence of the asthma-COPD overlap is the fact that it has been proven that bronchial hyperresponsive­ness is an independent predictor of COPD and mortality from respiratory causes in population-based studies4 , as well as a risk indicator of the accelerated decline in lung function in patients with mild COPD5 .

At present, there isn’t any evidence supporting the therapeutic decisions in patients with ACO, since traditionally they have been systematically excluded from research protocols in order to main­tain the homogeneity of the population among those who complied with the standard definitions of COPD or asthma1 .

Approximately one every four patients with COPD has asthmatic features; those were recently qualified as ACO by the Global Initiative for Asth­ma (GINA) and the Global Initiative for COPD (GOLD). Therefore, to identify them in real life poses a diagnostic and therapeutic challenge1 ; also the accurate definition of ACO is still controversial6 .

However, there is emerging agreement that some of the key features of ACO include persistent airflow limitation defined as a post-bronchodilator FEV1/FVC ratio < 70%, in symptomatic individu­als aged 40 years or older with well-documented history of asthma during childhood or early adult­hood, and exposure to cigarette smoke (more than 10 p/y) or to biomass1.

In patients with COPD, the ACO diagnosis is fundamental for including the prescription for an inhaled steroid (ICS). On the other hand, asth­matic patients diagnosed with ACO don’t show sig­nificant therapeutic implications, because initial therapy with the combination of long-lasting beta agonists plus ICS is the same for pure asthmatics and patients with asthma-COPD overlap2.

The impact of the correct diagnosis for and ade­quate treatment choice is crucial, because patients with ACO have a higher symptom burden, such as dyspnea and cough, an increased risk of rapid decline in FEV1, of exacerbations, hospitalization and mortality due to COPD1 when compared to patients with pure COPD or asthma.

The purpose of this study about the prevalence of the asthma-COPD overlap through the database of the EPOC.AR epidemiological study7 was to know the reality of our country, since up to now there isn’t any information regarding this topic.


Primary: to determine the prevalence of ACO in the EPOC.AR epidemiological study regarding the prevalence of COPD in Argentina7 .


1. To evaluate and analyze the clinical features of patients with ACO compared to patients with COPD.

2. To describe and compare treatments received by patients with ACO and COPD.


This study is a sub-analysis of the EPOC.AR study which includes all the patients diagnosed with COPD and differen­tiates (within that group) patients with diagnostic criteria of ACO from those with COPD. The EPOC. AR. study7 is multicenter, cross-sectional, and population-based. The population of the study has been randomly selected using cluster sampling and was divided into 6 urban clusters of Argentina, with the purpose of establishing the prevalence of COPD and evaluate the clinical and sociodemographic characteristics of patients, the treatment, and the various risk factors. The study was conducted between August 2014 and May 2016.

The following urban clusters were selected: La Plata, Rosario, Autonomous City of Buenos Aires, Northern Region of Gran Buenos Aires, Córdoba and Mendoza. The sample was selected by means of proba­bility, multistage cluster sampling based on map units and described in detail in supplementary material. Each selected person was invited to participate in the study. Subjects who accepted were requested to sign the informed consent7 .

Definition of terms

COPD was defined as a post-bronchodilator FEV1/FVC ratio < 0.7, and the GOLD 2017 classification was used to define the degree of obstruction and multidimensional ABCD assessment10 .

GOLD 2017 classification10 Global Strategy for the Diagnosis, Management and Prevention of COPD, Global Initiative for Chronic Obstructive Lung Disease (GOLD) 2017.

Definition of ACO

The diagnostic criteria for ACO were recommended by a panel discussion with experts from North America, East Europe and Asia that took place in Denver (CO, USA) on May 16th, 2015.

There are 3 major criteria and 3 minor criteria. The Committee recommends the presence of all 3 major criteria and at least 1 of the minor criteria.

Even though the Committee acknowledges that it is an arbitrary definition that needs validation, these are dynamic criteria, and with the addition of new data, modi­fications will be required11.


1. Persistent obstruction of the airway (post-BD FEV1/FVC < 70% or LLN) in individuals aged 40 or older.

2. Smoking (at least 10 packs/year) or exposure to indoor or outdoor air pollution (for example, biomass).

3. Documented history of asthma before 40 years or broncho­dilator response > 400 ml for FEV1.


1. Documented history of atopy or allergic rhinitis.

2. Bronchodilator response for FEV1 < 200 ml.

3. Peripheral blood eosinophil count ≥ 300 cells-Ul-1.

NOTE: the presence of eosinophilia in peripheral blood will be excluded from minor criteria, since no blood extrac­tions were performed in patients from the EPOC. AR study for any type of test.


Exacerbations were defined according to the 2017 GOLD Guides10 as acute worsening of symptoms that require additional treatment.

Exacerbations are classified as:

1. MILD: treated with short-acting bronchodilators (SABDs).

2. MODERATE: treated with SABDs plus antibiotics and/or oral corticosteroids.

3. SEVERE: the patient requires hospitalization or visits to the emergency department. They may also be associated with acute respiratory failure.

The following variables were analyzed in patients diag­nosed with COPD:

1. Medical record data:

• Smoking history (packs/year).

• History of asthma, atopy or allergic rhinitis.

• Respiratory symptoms: CAT (COPD Assessment Test) questionnaires8 and mMRC (Modified Medical Research Council) questionnaire.9

• Frequency of exacerbations the previous year with/ without hospitalization.

• Systemic comorbidities.

• Treatment received.

2. Pre- and post-BD spirometries.

Statistical analysis

Chi-Square Test, Pearson’s Chi Square Test, likelihood ratio, linear-by-linear association. The statistical analysis shall be conducted with the InfoStad 2014e program. A p-value < 0.05 shall be considered significant.


The population with diagnostic criteria for COPD included 504 patients, but there weren’t any available data in 6 of them, so the analyzed popu­lation was 498 patients (n = 498). The prevalence of COPD was 14.5% (CI: 13.4-15.7%). In this population we detected 95 patients with criteria for ACO, mostly males (53.4%) with a mean age of 63.6 years (SD ± 10.83) distributed in the fol­lowing way: 28% of the population between 40-59 years, 52% between 60-75 years, and 20% more than 75 years.

The prevalence of ACO in the population with diagnostic criteria for COPD was 19.08% (95% CI: 15.6-22.5), which is 2.6% of the whole population of the EPOC.AR study. The prevalence of cases compatible with ACO, according to the diagnostic criteria that were used, are shown in Figure 1, with 1% of patients with no history of asthma and a BD response ≥ 400 ml, and 32.7% of patients with asthma but with different bronchodilator respons­es: 3.6% with a BD response ≥ 400 ml and 14.5% with a BD response of 200-400 ml (Figure 2).

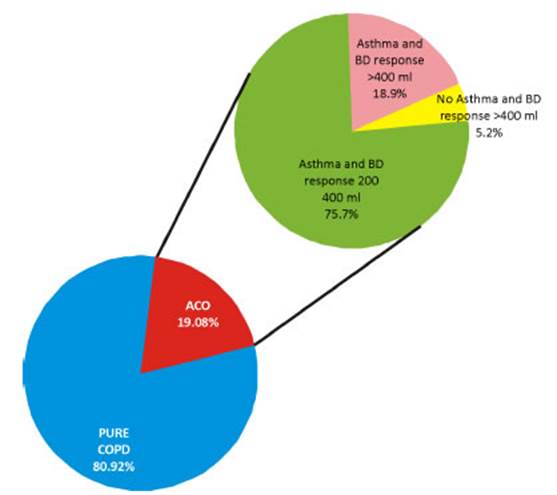

Figure 1. Frequency of criteria and prevalence of cases compatible with ACO.

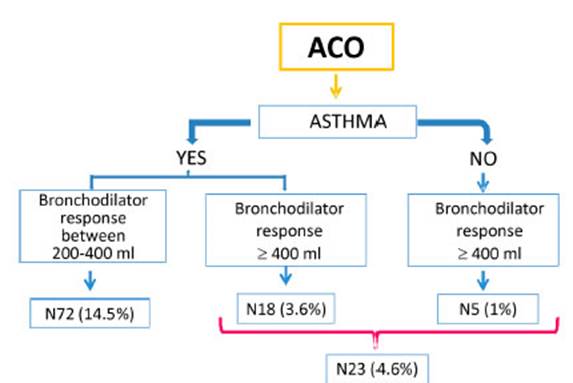

Figure 2. Frequency of criteria and prevalence of cases compatibles with ACO.

4.6% of the whole population with diagnostic criteria for ACO, including asthmatic and non­asthmatic patients (n = 23) showed a BD response ≥ 400 ml.

Table 1 compares the populations of patients with COPD with those with diagnostic criteria for ACO; it was detected that the latter show a lower mean age and lower average pre-BD FEV1, both with statistical significance (p < 0.01). There were also significant differences in post- BD spirometries, since a higher BD response was found (p < 0.05) in patients with ACO. Also a higher frequency of sibilance (p < 0.01; CI 2.75-7.64%), and larger increase in previous asthma and bronchitis diagnoses (p < 0.01; CI 3.79-10.05%) were detected, and in 26.08% (CI 22.16-29.99%) the patient was aware that some family member had an asthma diagnosis. If we consider the medication of patients with ACO, they mostly used inhaled corticosteroids com­bined with long-acting B2 agonist bronchodila­tors (ICS/LABA) p < 0.05; CI 1.1-5.3%. The fre­quency of exacerbations was higher in the group of patients with ACO (12.47%; CI 9.56-15.39%), with an increase in the use of ATBs (p < 0.05) indicated by health professionals in 90.48%. Patients with ACO showed 2.49 times (95% CI: 1.50-4.15) more probabilities of having respira­tory problems that altered their daily activities or caused absence from work, in comparison with pure COPD patients (p < 0.05).

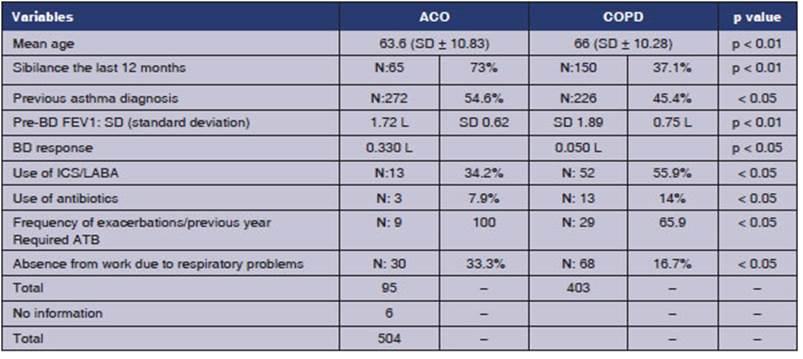

Table 1. Frequency of variables selected between cases compatible with ACO versus COPD

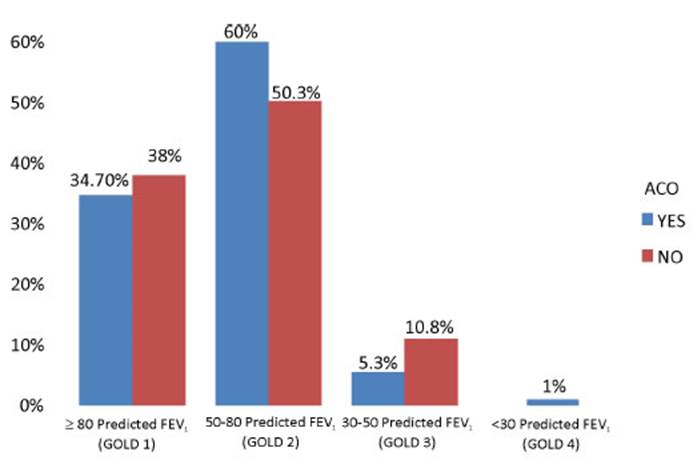

Figure 3. EPOC.AR: degrees of obstruction according to the GOLD Guides in ACO versus pure COPD groups.

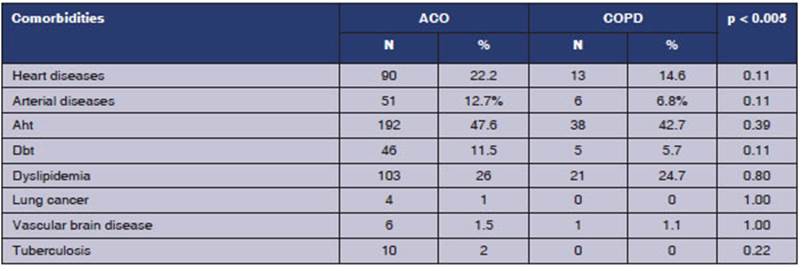

Table 2. Comorbidities in patients with ACO versus COPD


There are wide variations in the prevalence of ACO that are related to the type of population under evaluation (database analysis or clinical trials), the different criteria used for the identi­fication of ACO, and the definition of asthma and COPD6, and also to the age group (all the adults or subjects older than 40 years).

The prevalence of ACO in the general popula­tion oscillates between 1.6 and 4.5%, in patients with COPD, between 12.1 and 55.2%, and in pa­tients with asthma, between 13.3 and 61%13.

In the UPLIFT (Understanding Potential Long-term Impacts on Function with Tiotropium) study, when considering the criterion of a significant re­sponse to bronchodilator, the prevalence in COPD patients was 52%16.

In a recently published meta-analysis including 19 studies, the prevalence of ACO among patients with a COPD diagnosis was 27% in population-based studies, and 28% in studies carried out in hospitalized patients6.

In Spain, results from the recent CHAIN study including 831 COPD patients from 36 university hospitals showed a prevalence of ACO of 15% (us­ing the specific major and minor modified GesE­POC [Spanish COPD Guidelines] criteria). These results are similar to those of the COPDGene study, which were 13%6.

In our study, the prevalence of ACO was 19.08% (CI 15.6-22.5) in the COPD population of the EPOC.AR study, representing 2.6% of the total population of this population-based study (N 3,469). These percentages coincide with the data reported in the literature. But ultimately, while the prevalence of ACO ranges widely ac­cording to the source that was taken into account and the criterion used to define it, we could say that it ranges between 1.6 and 4.5% of the adult general population and between 15 and 25% of the adult population with chronic obstruction of the airflow6.

Llanos et al reported that patients with COPD had lower bronchodilator FEV1 than patients with ACO14, but in our study we observed that patients with ACO had significantly lower pre-bronchodilator FEV1.

Several studies showed that individuals with ACO have higher frequency of respiratory symp­toms in comparison with subjects with pure COPD. Maselli et al15 found that this group of patients shows higher frequency of dyspnea and a great impact on their quality of life. The author says that at present there isn’t any evidence of the worsening of symptoms, but this could be due to a “double hit”, with disease both of the airway and the alveolus and increased susceptibility to exacerbations. Generally speaking, the group of patients with ACO show more symptoms, worse quality of life and higher risk of exacerbations than patients with COPD, but they have better survival13. These findings can be observed in our study, since patients with ACO had higher fre­quency of sibilance and of previous diagnosis of asthma and bronchitis.

Both patients with asthma and those with COPD are characterized by acute worsening of respiratory symptoms, and these events have a significant im­pact on quality of life and healthcare costs7. Many cohorts compared only patients with asthma or COPD and observed that exacerbations were more frequent in the ACO group, but these observations are not consistent in mild degrees of the disease, and the mechanism explaining this assertion is unknown. In our studies we also observed a signifi­cantly higher frequency of exacerbations when com­paring patients with ACO with the COPD group.

There is increasing interest in the factors af­fecting the disease, including comorbid conditions. Recent studies have shown a higher frequency of comorbid conditions in patients with ACO, but the mechanisms aren’t clear15. In our group of patients, we didn’t observe any increase in comor­bidities within the ACO group when compared to the pure COPD group.

There are limitations to our study, some of them correspond to those of the EPOC-AR study. In the population evaluated within the group of patients with ACO there was majority of males, but the dif­ference wasn’t significant. This may be due to the fact that most surveyed women stayed at home, especially during daytime schedules, and to their better willingness to carry out the procedures of the study. One specific limitation of this work regarding the Prevalence of the Asthma-COPD Overlap in the EPOC. AR7 study is the fact that we didn’t get the peripheral blood eosinophil concentrationbecause no blood extractions were performed in patients from the EPOC. AR study for any type of test.


The prevalence of ACO was 19.08% in patients diagnosed with COPD from the EPOC.AR study. Patients who met the diagnostic criteria for ACO where significantly younger, had higher degrees of obstruction, greater use of inhaled corticosteroids, higher frequency of sibilance and exacerbations that required the use of antibiotics. We emphasize the importance of identifying this phenotype that has different and more severe clinical and prog­nostic implications, for the purpose of optimizing its management.


1. Sin DD. Asthma-COPD overlap syndrome: what we know and what we don’t Tuberc Respir Dis 2017; 80: 11-20.

2. Miravitlles M. Diagnosis of asthma-COPD overlap: the five commandments. Eur Respir J 2017;49:1700506.

3. Silva GE, Guerra S, Barbee RA. Asthma as a risk factor for COPD in a longuitudinal Study. Chest 2004; 126: 59-65.

4. Hosper JJ, Postma DS, Weiss ST, et al. Histamine airway hy­perresponsiveness and mortality from Chronic Obstructive Pulmonary Disease: a cohort study. Lancet 2000;356(9238): 1313-7.

5. Taskin DP, Altose MD, Connett JE, et al. Methacholine reactivity predicts change in lung function over time in smokers with early Chronic Obstructive Pulmonary Disease: The Lung Health Study Research Group. Am J Respir Crit Care Med 1996; 153(6 Pt 1): 1802-11.

6. Maselli DJ, Hardin M, Christenson SA, et al. Clinical Ap­proach to the Therapy of Asthma-COPD Overlap. Chest. 2019; 155: 168-77.

7. Echazarreta AL, Arias SJ, del Olmo R, et al; Grupo de es­tudio EPOC.AR. Prevalencia de enfermedad pulmonar ob­structiva crónica en 6 aglomerados urbanos de Argentina: el estudio EPOC.AR. Arch Bronconeumol 2018; 54: 260-9.

8. Jones PW, Harding G, Berry P, Wiklund I, Chen WH, Kline Leidy N. Developmentand first validation of the COPD as­sessment test. Eur Respir J. 2009; 34: 648-54.

9. Bestall JC, Paul EA, Garrod R, Garnham R, Jones PW, Wedzicha JA. Usefulness of the Medical Research Council (MRC) dyspnoea scale as a measure of disability in patients with chronic obstructive pulmonary disease. Thorax. 1999; 54: 581-6.

10. Vogelmeier CF, Criner GJ, Martínez FJ. Global strategy for the diagnosis, management, and prevention of chronic obstructive lung disease 2017 report: GOLD executive summary. Arch Bronconeumol. 2017; 53: 128-49.

11. Bonten TN, Kasteleyn MJ, de Mutsert R. Chavannes,Annelies M. Slats and Christian Taube Defining asthma-COPD over­lap syndrome: a population-based study. Eur Respir J 2017; 49: 1602008.

12. Sin DD, Miravitlles M, Mannino DM, et al. What is asthma - COPD overlap syndrome? Towards a consensus definition from a round table discussion. Eur Respir J 2016; 48: 664-3.

13. Plaza V, Álvarez F, Calle M, et al. Consenso sobre el solapamiento de asma y EPOC (ACO) entre la Guía española de la EPOC (GesEPOC) y la Guía Española para el Manejo del Asma (GEMA). Arch Bronconeu­mol. 2017; 53(8): 443-9.

14. Pérez de Llano L, Cosío BG, Miravitlles M, Plaza V; CHA­COS study group. Accuracy of a New Algorithm to Identify Asthma-COPD Overlap (ACO) Patients in a Cohort of Patients with Chronic Obstructive Airway Disease. Arch Bronconeumol (Engl Ed). 2018; 54:198-204.

15. Maselli DJ, Hanania N. A Asthma COPD overlap: Impact of associated comorbidities. Pulmonary Pharmacology & Therapeutics. 2018; 52:27-31.

16. Bateman ED, Reddel HK, van Zyl-Smit RN, et al. The asth­ma-COPD overlap syndrome: towards a revised taxonomy of chronic airways diseases? Lancet Respir Med 2015; 3: 719-28.
